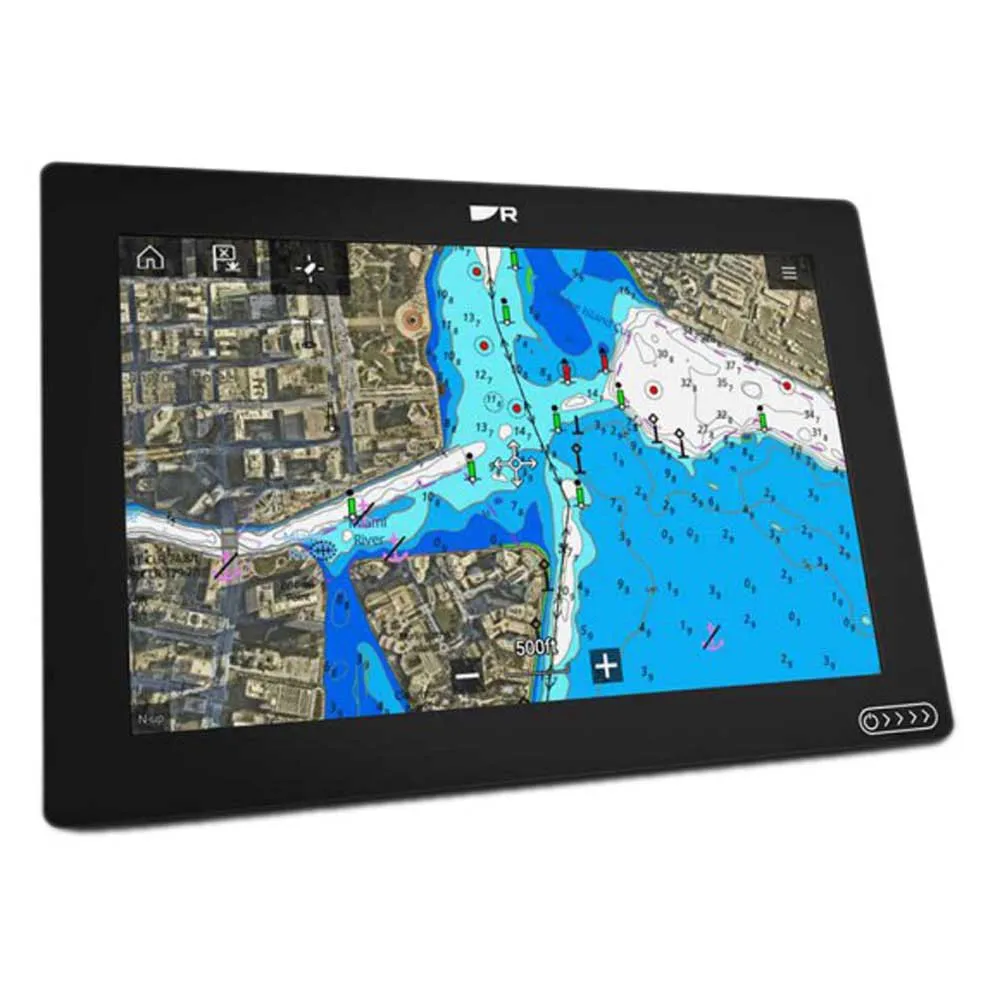

RAYMARINE Axiom+ 12 LightHouse Sonar

Features:

All-In-One Chartplotter, Plus More:
Axiom®+ Is A New Generation Of Axiom Chartplotters Upgraded With All-Weather Higher Resolution Displays That Are 25 Percent Brighter Than The Previous Generation. Axiom+ Displays Are Equipped With A Powerful Quad-Core Processor For Industry-Leading Speed And Responsiveness.
– Seamlessly Redraw Charts And Expand Axiom+ With Solid State Radar, And Flir Thermal Cameras Or Add A Marine Camera And Navigate With Clearcruise Augmented Reality. Axiom+ Features The Renowned Lighthouse Operating System, So You Can Easily Navigate And Expand Your System.

Performance Tuned:
– Fast And Fluid Chart Redraw Of Lighthouse, Navionics And C-Map Electronics Charts.
– Powerful Quad-Core Processor, Plus Increased Onboard Storage For Personal Data And Apps.
– Smart And Intuitive Lighthouse Os Makes Navigating Easy.
– Ready To Expand – Network With Multiple Displays, Radars, Engines, Marine Cameras, And More.

Maximum Visibility:
– Upgraded Ips Display Technology Delivers Charts, Sonar, Radar, And Video In Stunning Color.
– Improved Viewing With New Lighthouse Color Themes, Including Day, Dusk And Night Mode.

Hydrotoughtm:
– Axiom+ Features Hydrotough Nano-Coated, Impact-Resistant Screens That Dispels Water, Oil, And Smudges.
– All-Weather Hydrotough Technology Delivers Improved Color And Contrast And Accurate Touch Controls – Even When Wet.

Make Smarter Navigation Decisions:
– Add An Ais (Automatic Identification Receiver) And Safely Navigate Busy Waterways With Ais Target Overlays
– Upgrade To Clearcruise Augmented Reality And Visualize Ais Targets, Navigation Aids, And Waypoints In High-Definition Video.
– Avoid Obstacles With Optional Quantum And Cyclone Radars And Doppler Target Tracking.

Specifications:

Physical:
Dimensions (Trunnion Mounted):
– Axiom+ 12: Width: 314 Mm (12.36 In), Height: 217 Mm (8.54 In), Depth Including Cables: 178 Mm (7.01 In)

Dimensions (Surface/Flush Mounted):
– Axiom+ 12: Width: 314 Mm (12.36 In), Height: 226.72 Mm (8.93 In), Depth Including Cables: 178 Mm (7.01 In)
– Accessory Connection: Usb Micro B
– Ethernet Connection: Raynet (10/100 Mbits/S)
– External Storage: Microsdxc Card Slot X 1
– Nmea 2000 Connection: Devicenet (Male Connector Built Into Power Cable)
– Wireless Connections: Bluetooth: V4.0, Wi-Fi: 802.11/B/G/N
– Internal Storage: 16 Gb Solid State (14 Gb Usable)
– Transducer Connection: 25 Pin Realvision Type Connector. Requires The A80490 Adaptor Cable For Cpt-S Style Transducers

Power:
Power Consumption:
– Axiom+ 12: 18.96 W
– Operating Voltage Range: 8 V Dc To 16 V Dc
– Fuse Rating: 7 A
– Nominal Supply Voltage: 12 V Dc
– Len (Nmea 2000 Load Equivalency Number): 1

Environmental:
– Operating Temperature: 25°C To +55°C (-13°F To 131°F)
– Storage Temperature: 30°C To +70°C (-22°F To 158°F)
– Relative Humidity: Up To 93% @ 40°C (104°F)
– Waterproof Rating: Ipx6, Ipx7

Gps:
– Position Accuracy: Without Sbas: ≤ 15 Metres 95% Of The Time, With Sbas: ≤ 5 Metres 95% Of The Time
– Geodetic Datum: Wgs-84 (Alternatives Can Be Selected On The Mfd)
– Antenna: Internal – Ceramic Chip Mounted Near Top Of Unit
– Gnss Compatibility: Gps, Glonass, Beidou
– Almanac Update: Automatic
– Signal Acquisition:- Automatic
– Receiver Ic Sensitivity: 165 Dbm (Tracking), 160 Dbm (Acquisition), 148 Dbm (Cold Start)
– Operating Frequency: 1574 Mhz To 1605 Mhz
